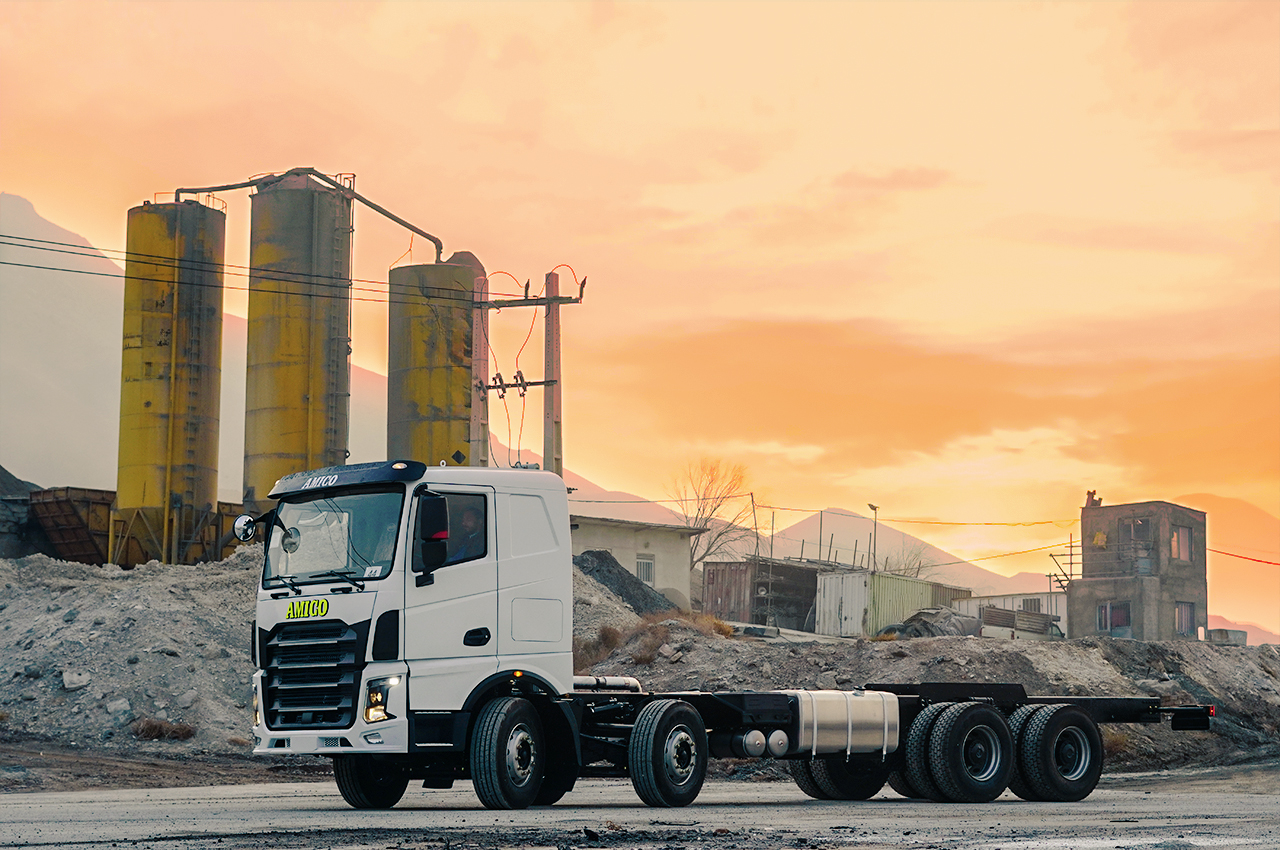

A symbol of Strength and Elegance Amico
1
Engine power 340 horsepower
2
EURO 5 EEV standard
3
Powerful - Safe and Die Hard
Car specifications table

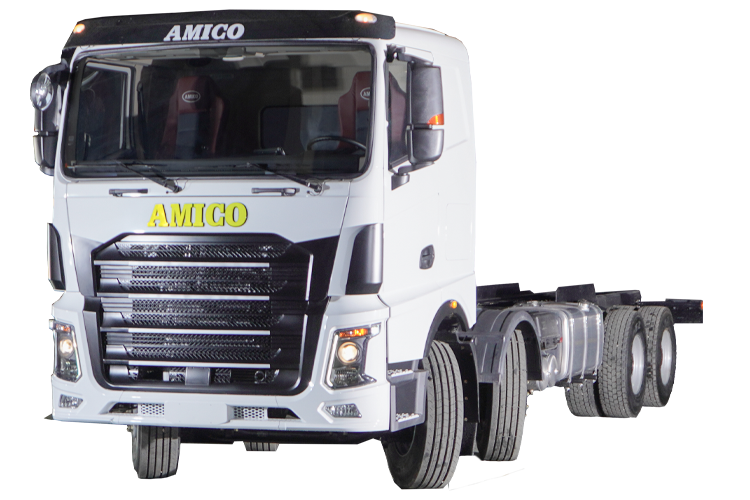

| Model | M3840C NEW |
| Gross Vehicle Weight (GVW) | 32 tons |
| Curb Weight (with cargo body) | 14,960 kg |
| Vehicle dimensions: length, width, height (mm) | 11,870 × 2,550 × 3,285 |
| Engine | YUCHAI YC6K1248-50 |
| Engine Displacement | 12.155 L |
| Number of cylinders | 6 |
| Number of valves | 24 |
| Engine power | 340 kW at 1,900 RPM |
| Maximum Torque | 2,230 N·m at 1,300 RPM |
| Fuel Consumption | 201.15 g/kWh |
| Emission standard | EEV + Euro 5 |
| Transmission | FAST GEAR 12JSDX240K |
| Clutch | Single-plate dry clutch with diaphragm spring |
| Axles | Front: FANG SHENG, Rear axles: equipped with differential lock system |
| Suspension system | Front:Leaf spring + telescopic shock absorber Rear: Multi-layer steel leaf spring + stabilizer bar |
| Chassis | Double-layer ladder-type frame |
| Steering | Hydraulic power steering + electric emergency steering pump |
| Cabin suspension | Air suspension |
| Braking & Safety Systems | Equipped with WABCO components; drum brakes with ABS , ASR and EBL |
| Auxiliary Brake System | Engine brake |
| Tire size | 315/80R22.5 |
| Fuel type | Diesel |
| Anti-theft system | Not available |
| Driver seat system | Pneumatic |
| Passenger capacity | 2 persons |
Equipment and Features
| ✔ Digital instrument cluster | ✔ All-steel forward-tilting cab with air suspension |
| ✔ Adjustable pneumatic seats | ✔ Power windows |
| ✔ Equipped with monitor | ✔ Tachograph and auxiliary heater |
